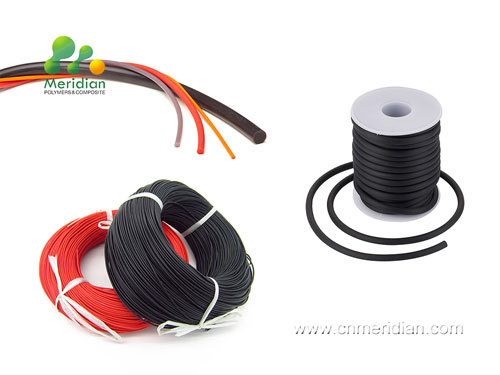

Round cords and round cord rings achieve their static sealing effect from the deformation of the cross section after installation and compression into the installation space. A round cord ring is similar to an O-ring. Round cord rings are often used for repairs and assembled to size on site.
Meridian offers round cords and round cord rings made of the materials Viton / FKM.
Other material and cross section can be available upon customers’ request.
ADVANTAGES AT A GLANCE
*Media pressure strengthens the sealing function in the operational state
*Round cords can be individually joined into round cord rings in the desired dimensions at the point of use
*In the case of round cord rings: a high degree of flexibility thanks to customized dimensions
TOLERANCES
Accordance with ISO 3302-1 E3
DIMENSIONS
The currently available dimensions
| ITEM | Inch | Metric | Length | Material |
| CORDFKM/1X30/75B | 0.04 | 1 mm | 30 m | FKM 75 |
| CORDFKM/2X30/75B | 0.079 | 2 mm | 30 m | FKM 75 |
| CORDFKM/3X30/75B | 0.118 | 3 mm | 30 m | FKM 75 |
| CORDFKMIN/125X30/75B | 0.125 | 30 m | FKM 75 | |
| CORDFKM/4X30/75B | 0.157 | 4 mm | 30 m | FKM 75 |
| CORDFKM/5X30/75B | 0.196 | 5 mm | 30 m | FKM 75 |
| CORDFKM/6X30/75B | 0.236 | 6 mm | 10 m | FKM 75 |
| CORDFKMIN/250X10/75B | 0.25 | 10 m | FKM 75 | |
| CORDFKM/7X10/75B | 0.275 | 7 mm | 10 m | FKM 75 |
| CORDFKM/8X10/75B | 0.313 | 8 mm | 10 m | FKM 75 |
| CORDFKM/9X10/75B | 0.354 | 9 mm | 10 m | FKM 75 |
| CORDFKM/10X10/75B | 0.394 | 10 mm | 10 m | FKM 75 |
| CORDFKM/12X10/75B | 0.472 | 12 mm | 10 m | FKM 75 |
| CORDFKMIN/500X10/75B | 0.5 | 10 m | FKM 75 | |
| CORDFKM/14X10/75B | 0.55 | 14 mm | 10 m | FKM 75 |
| CORDFKM/15X10/75B | 0.59 | 15 mm | 10 m | FKM 75 |
| CORDFKM/18X10/75B | 0.708 | 18 mm | 10 m | FKM 75 |
| CORDFKMIN/750X10/75B | 0.75 | 10 m | FKM 75 | |
| CORDFKM/20X10/75B | 0.788 | 20 mm | 10 m | FKM 75 |
