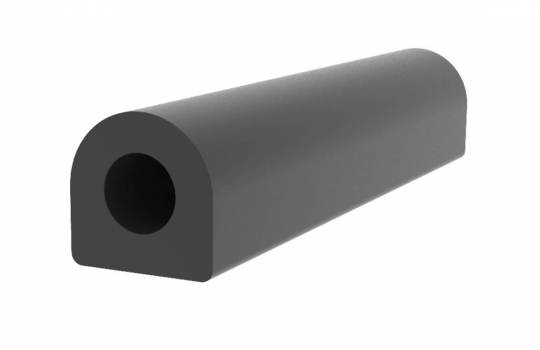

Type DO Rubber Fenders

Type DO fenders are simple rubber profiles, usually attached with bolts to the structure. It can be made in virtually any length then cut and drilled to suit each application.

INQUIRY

Description

Type DO fenders are simple rubber profiles, usually attached with bolts to the structure. It can be made in virtually any length then cut and drilled to suit each application. Pre-curved sections and special sizes are available on request.

Usually black in color, Type DO fenders can also be supplied in creamy white as an option.

Features

With reasonable reaction it may absorb more energy than that of cylindric type

Convenient to installing

It is usually used for docks of frame work type and ships due to the small size of its bottom width

Applications

Jetties and wharves for small craft

Tugs and workboats

Pontoon protection

Inland waterways

General purpose fendering

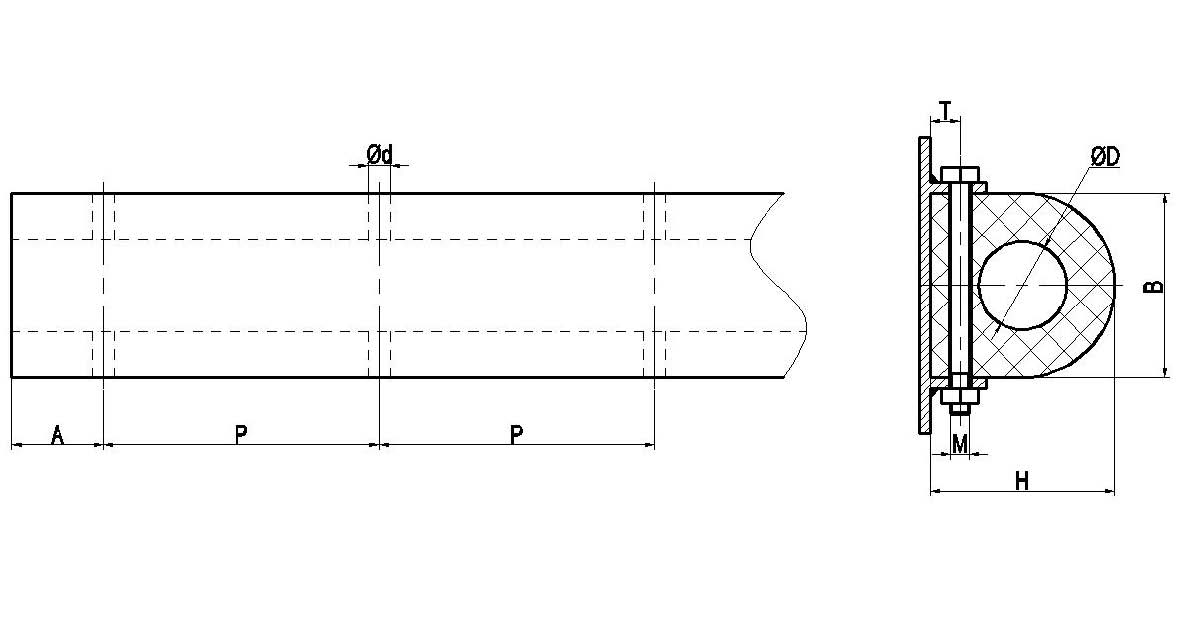

Specifications of DO Type Rubber Fender

Specifications	H	B	T	A	P	ØD	Ød	M	Max Length (mm)	Weight (kg/m)
DO100x100	100	100	20	100~150	300~500	50	12	M10	5000	9
DO150x150	150	150	30	100~200	300~500	75	15	M12	5000	21
DO200x200	200	200	30	100~200	300~500	100	27	M24	3000	37
DO250x250	250	250	45	100~200	300~500	125	30	M27	4000	57
DO300x300	300	300	60	100~200	300~500	125	30	M27	4000	89
DO350x350	350	350	65	100~200	300~500	150	35	M30	3000	120
DO400x400	400	400	70	100~200	300~500	200	38	M33	3000	145
