LEG Fenders

Leg fenders are high-performance modular rubber fenders with exquisite geometry, easy to install, little maintenance, and high performance and efficient energy absorption. They have a narrower footprint than traditional leg fenders and can be mounted behind a panel or pile. Leg fenders can also be used with a UHMW-PE shield to provide a low-cost alternative.

Types

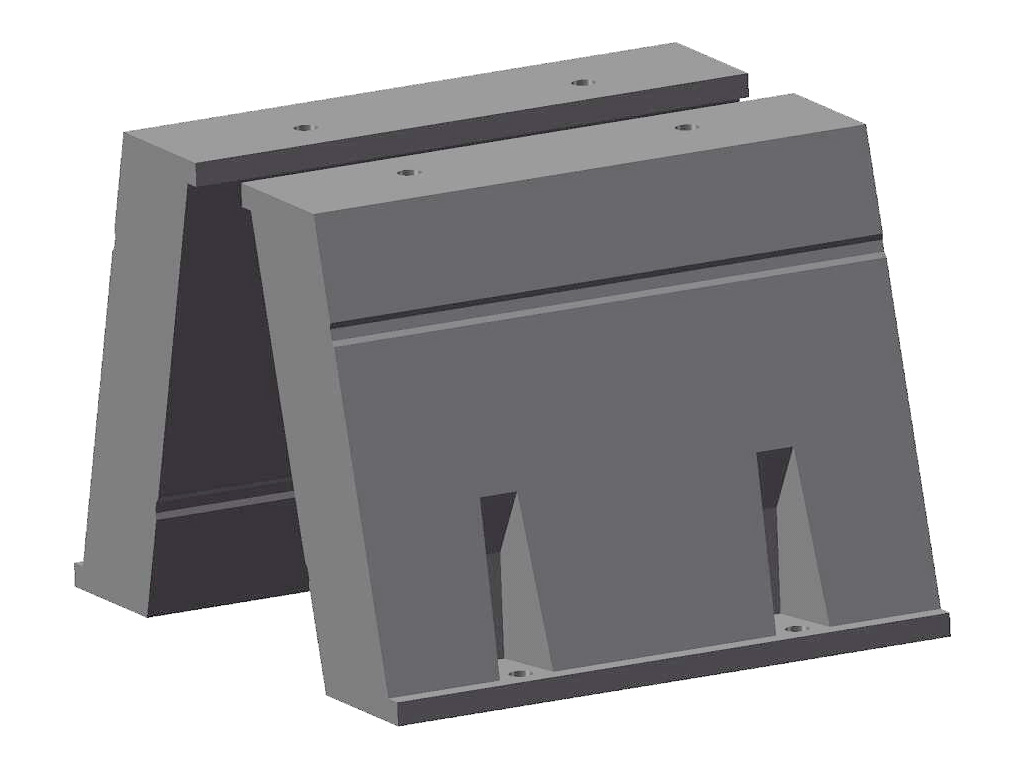

Leg rubber fenders system is the pair leg fenders with steel panels or UHMW-PE face pads, standard heights from 300mm to 1600mm, and lengths from 900mm to 2000mm. Other sizes are available on request.

Installation

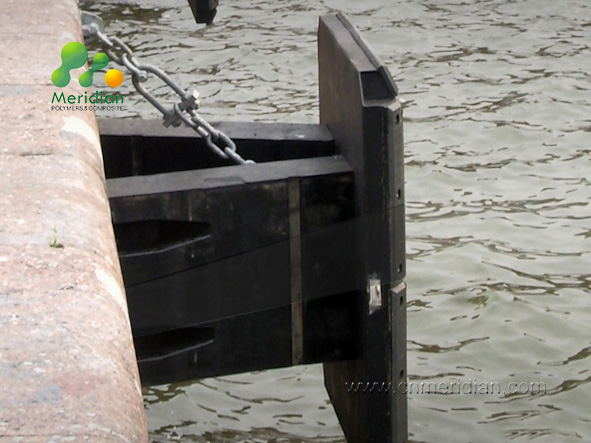

Leg fenders can be mounted both vertically and/or horizontally, ideal for the restricted spaces.

Applications
Container terminals
Tanker berths
Bulk and general cargo berths
RoRo berths

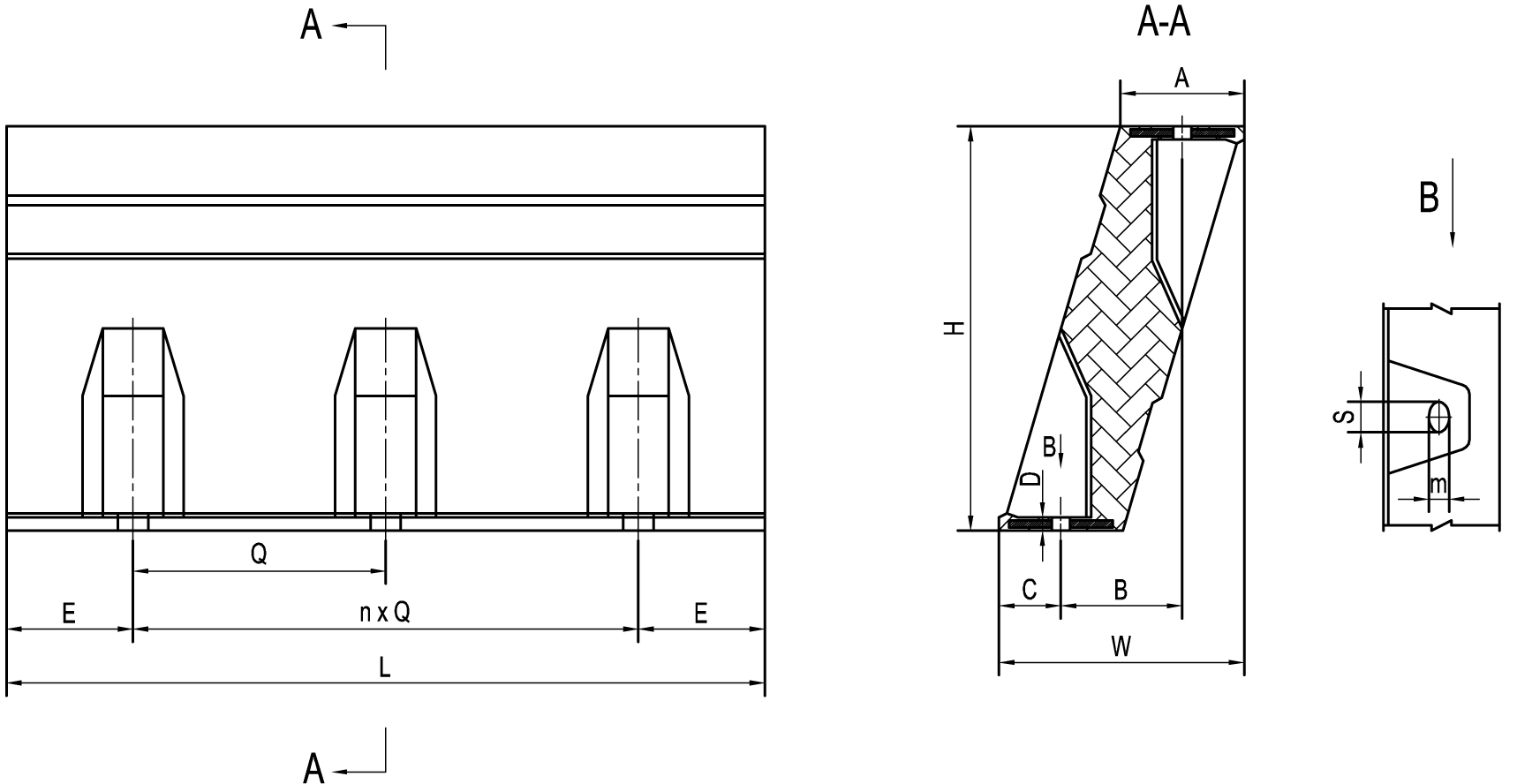

Specifications of Leg Fenders

Type	Specifications												Weight
	H	L	W	A	B	C	D	E	nxQ	m	S	M
ME 300	300	1000	188	95	93	47.5	15	250	1 x 500	24	32	M20	39
	300	1500	188	95	93	47.5	15	250	2 x 500	24	32		59
	300	2000	188	95	93	47.5	15	250	3 x 500	24	32		78
ME 400	400	1000	252	125	124	62.5	20	250	1 x 500	28	38	M24	72
	400	1500	252	125	124	62.5	20	250	2 x 500	28	38		108
ME 500	500	1000	297	155	142	77.5	20	250	1 x 500	34	50	M30	110
	500	1500	297	155	142	77.5	20	250	2 x 500	34	50		198
	500	2000	297	155	142	77.5	20	250	3 x 500	34	50		220
ME 550	550	1000	338	168	170	84	20	250	1 x 500	34	50	M30	132
	550	1500	338	168	170	84	20	250	2 x 500	34	50		198
	550	2000	338	168	170	84	20	250	3 x 500	34	50		264
ME 600	600	1000	379	180	199	90	20	250	1 x 500	34	50	M30	156
	600	1500	379	180	199	90	20	250	2 x 500	34	50		234
	600	2000	379	180	199	90	20	250	3 x 500	34	50		312
ME 700	700	1000	435	220	215	110	26	250	1 x 500	34	50	M30	205
	700	1500	435
