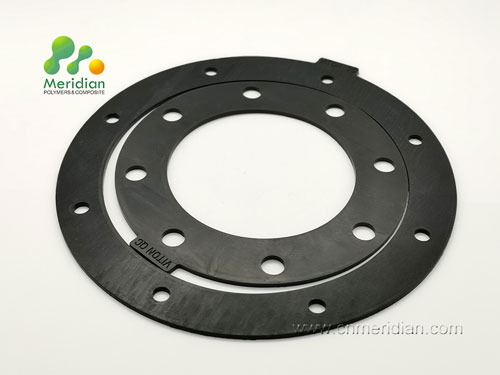

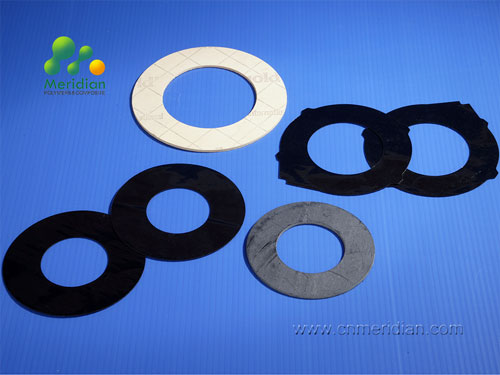

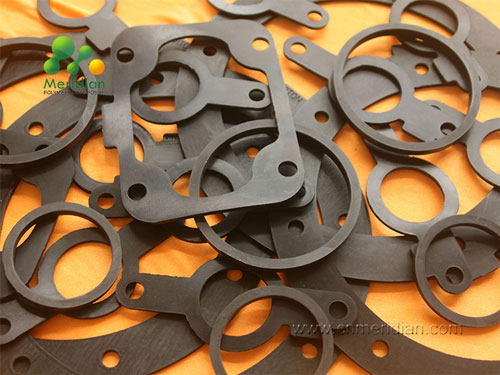

Moulded Gaskets

Gaskets are the mechanical seal that is flat and fills the gaps in between two objects, typically situated in such positions to inhibit leakage of any fluid or gas between those two parts during times where they are under various degrees of compression.
Description

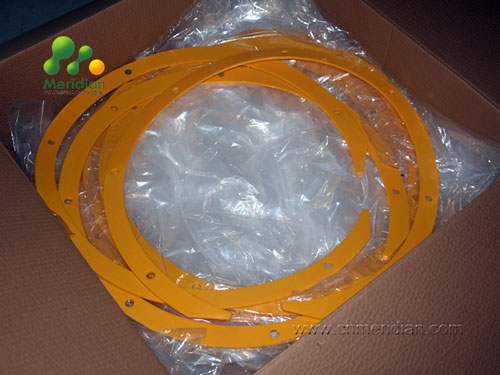

Changzhou Meridian makes gasket according to your drawings or technical specification, We can get ISO 3302-1 M1 tolerance grade and ISO 2768 f grade. The maximum diameter of one piece molded rubber gaskets could be 2 meters.
Gaskets Materials
Changzhou Meridian Gaskets are available in the following materials:
Rubber Elastomer---Rubber elastomer gaskets are important in seal technology due to their wide spectrum of thermal and chemical resistance.
  • FEPM (AFLAS,Terafluoroethylene-propylene Rubber),FKM (Viton, Fluorine rubber),
  • VMQ (Methylvinyl silicone rubber), FVMQ (Fluorosilicone rubber)
  • ACM (Polyacrylate rubber), CSM (Hypalon), ECO (Chlorohydrin rubber)
  • FLAME/FIRE RETARDANT RUBBER
  • EPDM (Ethylene-Propylene-Diene Monomer rubber), CR (Neoprene rubber), NBR (Nitrile -butadiene rubber), SBR (Styrene Butadiene Rubber)
  • NR (Natural rubber)
Plastic Elastomer---Hard plastics and fluorinated thermoplastics are also widely used for seal technology
  • PTFE,
  • PEEK,PPS
  • TPE/TPR, TPV (Santoprene)
  • ABS, PE, PP, PS, PVC
  • PA, PBT, PC, PMMA, POM, PPO
Polyurethanes---Polyurethanes have gained a substantial importance in modern seal technology.
  • Casting Polyurethane (CPU)
  • Thermoplastic Polyurethane (TPU)
  • Millable Polyurethane (MPU)
