HNBR / Hydrogenated Butadiene-acrylonitrile Rubber is partially, completely hydrogenated acrylonitrile-butadiene rubber. exceptional performance include,
- Excellent long-term temperature resistance obtainable with HNBR
- Excellent resistance to many automotive fluids such as engine oils, ATF, power steering fluid and coolants
- Excellent resistance to many modern fuels including biodiesel
- Resistance to hydrogen sulfide and amines
- Resistance to acids and alkalis
- Resistance to steam
- Resistance to ultraviolet (UV) radiation
- Low noise/vibration transmission
Examples of articles where HNBR can be used to advantage are grouped together by industry:
- Automotive Industry
- Oil Industry
- Electrical Industry
- Mechanical Engineering Industry
- Ship Building Industry

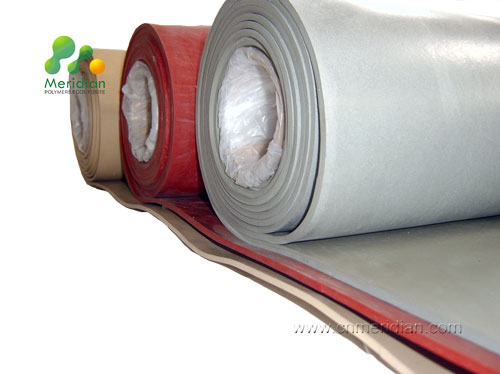

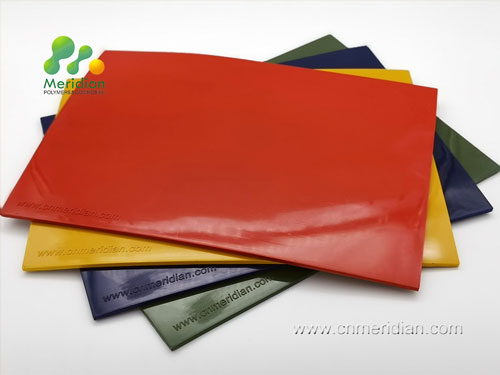

We can provide you colour HNBR rubber sheeting normally, the typical color is Red, White, Blue and Green, any customized Technical Specification is welcomed.
- HNBR7010 rubber sheet
- HNBR8010 rubber sheet
Technical Specification
| Type |
ITEM No. |
Color |
Specific
Gravity
(g/cm3) |
Hardness
(shore A) |
Tensile
Strength
(Mpa) |
Elongation
at Break
(%) |
TEARING STRENGTH (KN/m) |
Temperature Range
(°C) |
| HNBR |
70B/10M |
Colour |
1.4±0.05 |
70±5 |
>10 |
>400 |
>50 |
-45~160 |
| HNBR |
80B/10M |
Colour |
1.45±0.05 |
80±5 |
>10 |
>300 |
>40 |
-45~160 |
Over 10mm thickness-Plates : 2500mm x 1000-2000 mm
OTHER COLOURS, HARDNESS AND TECHNICAL SPECIFICATIONS CAN BE AVAILABLE UPON REQUEST
8mm & 10mm – Rolls: 1000mm-1200mm wide x 5-10 meters long
1mm to 6mm - Rolls: 1000mm -1200mm-2000mm wide x 10-20 meters long
Available in thicknesses: 1mm to 25mm
Information of a technical nature is based on laboratory tests which either Meridian conducts or sends to an independent laboratory for testing for determination of uses as requested in writing by customer. Meridian believes these to be reliable. However, Meridian has no control over the application of the material to, or part of, the final product and therefore, Meridian makes no express or implied warranty of result, fitness or merchantability. The customer should determine reliability for the end use or particular application.
