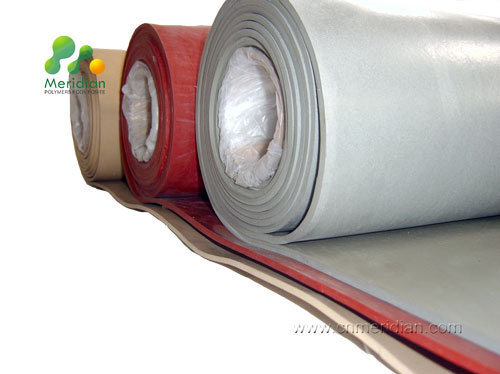

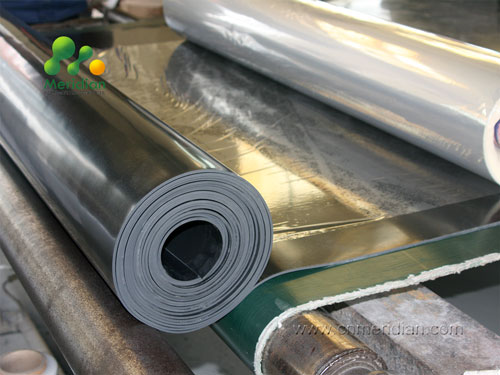

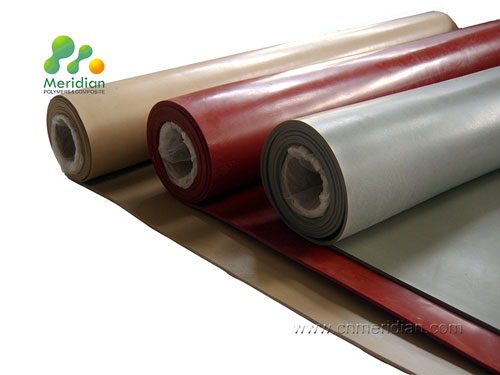

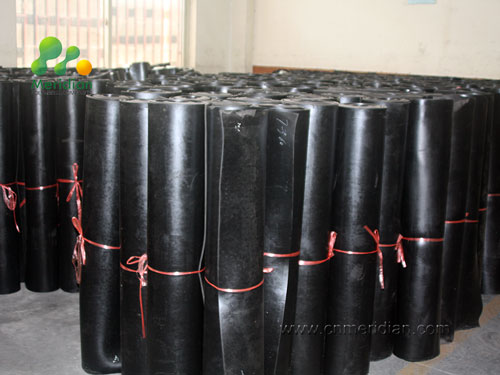

NR/Natural Rubber Sheeting

Natural rubber is obtained from the gum tree and classified in different grades.

INQUIRY

Description

CIS-Polyisoprene
Natural rubber is obtained from the gum tree and classified in different grades.

CHEMICAL RESISTANCE of NR

Good resistance to acids, bases and salts.

PROPERTIES of NR

Excellent mechanical properties, such as tensile strength, elasticity and tear resistance.
Wide range of hardness, from 35~90 shore A.
High resilience, excellent dynamic properties and low compression set.
Excellent electrical properties.

Product Dimensions

Thickness	Width	Length
1mm~40mm	1000mm~2000mm	5m~20m

We can supply sheet cut in strips, in different widths, according to your requirements.

Normal colours, hardness and technical specifications we offered

Ref	Colours	Specific Gravity (g/cm³)	Hardness (Shore A)	Tensile Strength (Mpa)	Elongation (%)
PREMNR0001B	Black	1.20±0.05	40±5	10	500
PREMNR0001B	Black	1.30±0.05	60±5	6	400
PREMNR0001B	Black	1.40±0.05	70±5	5	300
PREMNR0001B	Black	1.40±0.05	80±5	6	200
PREMNR0001B	Black	1.40±0.05	90±5	5	180
PREMNR0001N	Natural	1.30±0.05	60±5	6	400
PREMNR0001N	Natural	1.40±0.05	70±5	5	300
PREMNR0001N	Natural	1.40±0.05	80±5	6	200
PREMNR0001G	Grey	1.20±0.05	40±5	10	500
PREMNR0001G	Grey	1.30±0.05	60±5	6	400
PREMNR0001G	Grey	1.40±0.05	70±5	5	300
PREMNR0001G	Grey	1.40±0.05	80±5	6	200
PREMNR0001R	Red	1.00±0.05	40±5	15	500
PREMNR0001R	Red	1.30±0.05	60±5	6	400
PREMNR0001R	Red	1.40±0.05	70±5	5	300
PREMNR0001R	Red	1.40±0.05	80±5	6	200

OTHER COLOURS, HARDNESS AND TECHNICAL SPECIFICATIONS CAN BE AVAILABLE UPON REQUEST

Working Temperature range: -40°C to +110°C
