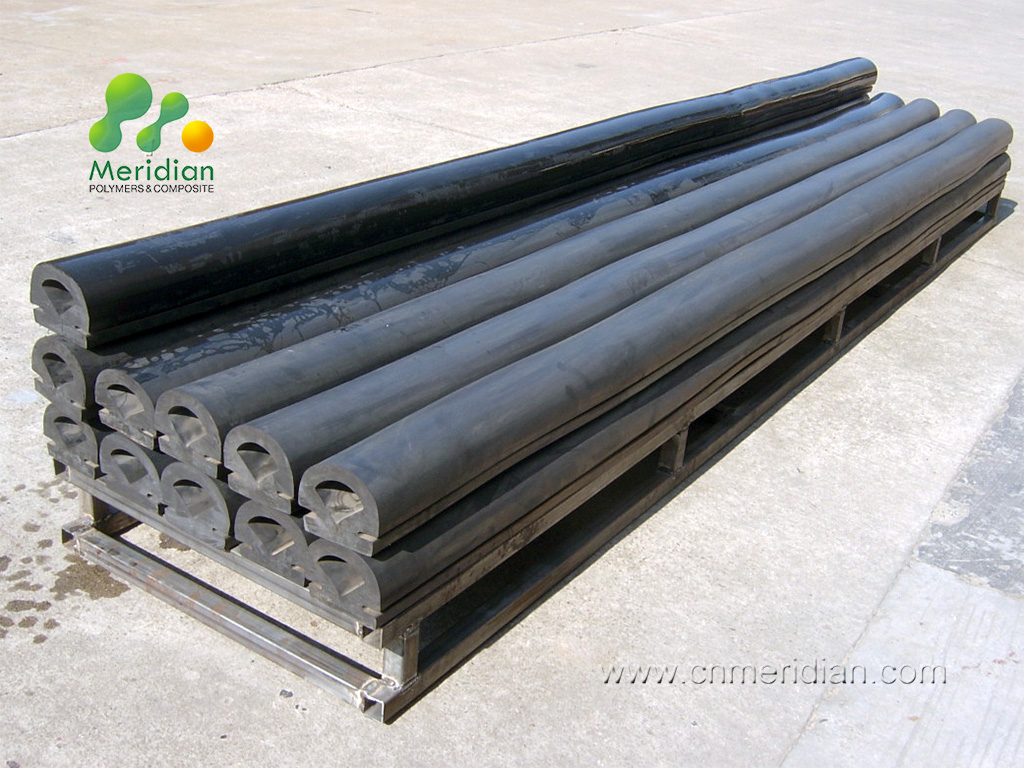

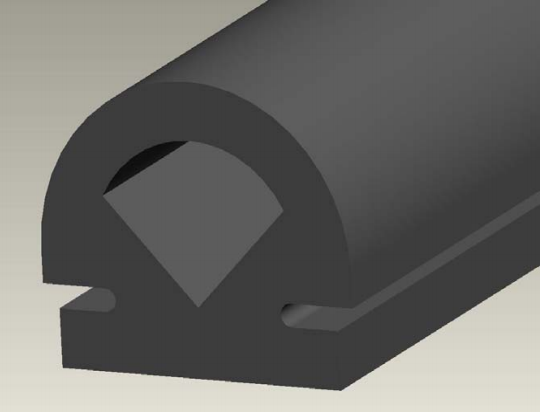

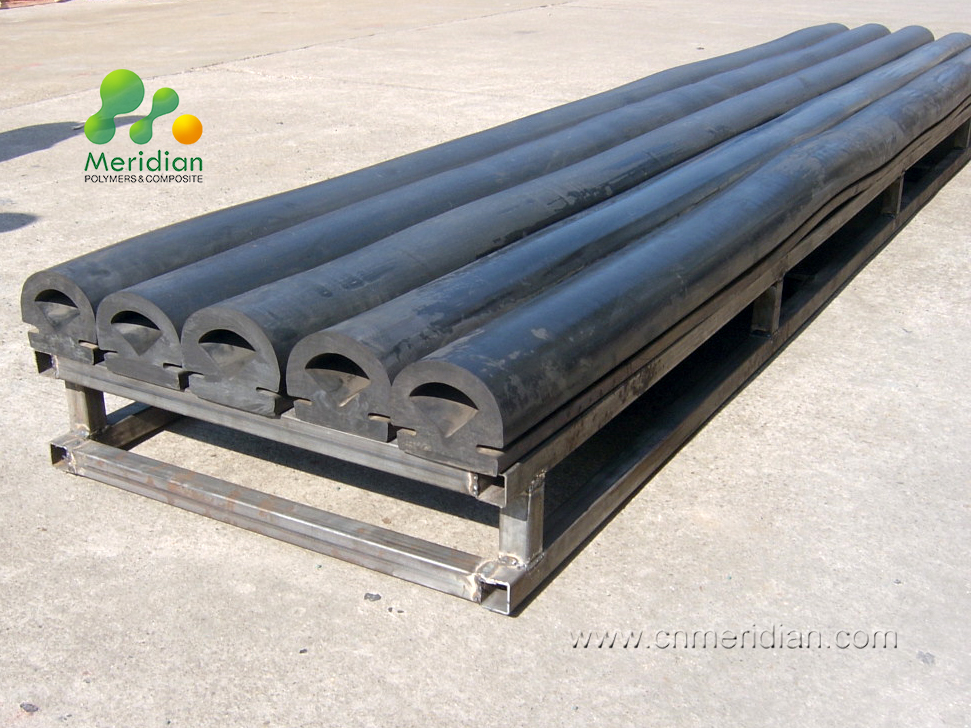

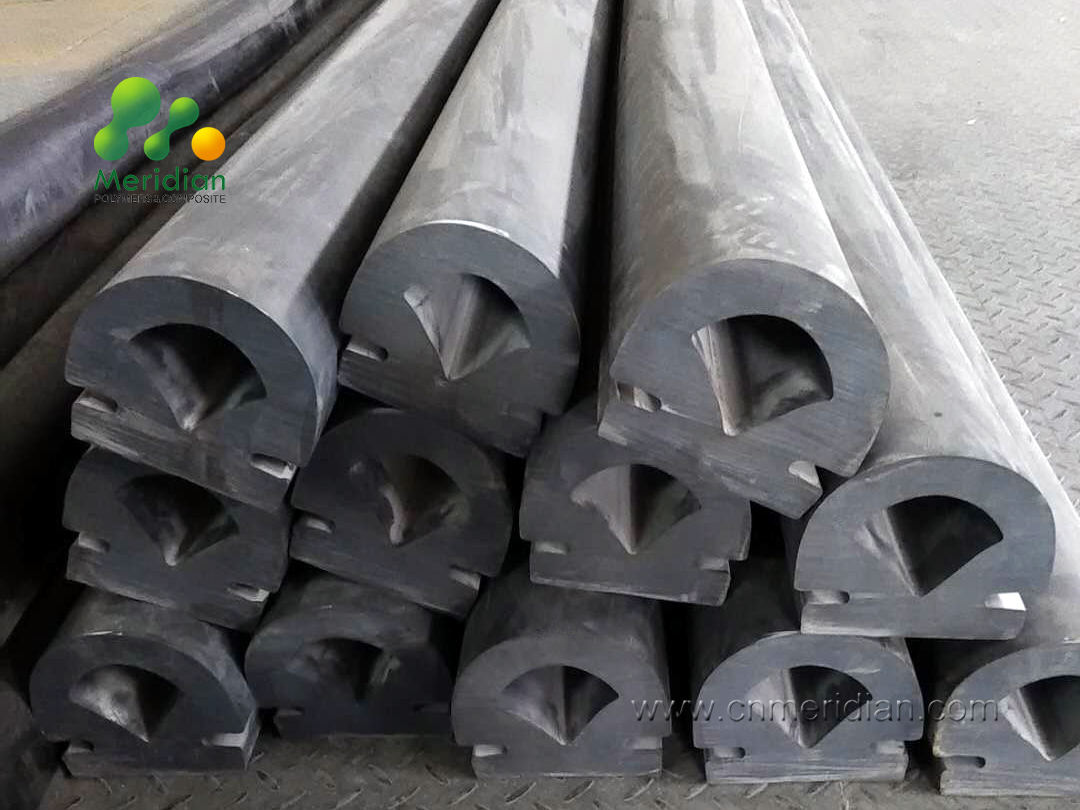

Fan nose rubber fenders are a type of marine fender that is designed to protect vessels and dock facilities. They are characterized by their fan-shaped nose, which helps to reduce the impact force on the vessel.
Type
Fan nose fenders are made of high-quality black or non-marking grey EPDM rubber compound that is formulated to resist weathering and ozone attack1.
Installation
Fan Nose fender presents a professional looking D-shaped installation with no visible fasteners or fastener holes. It is held on the vessel, truck or dock in an angle iron with an internal channel.
They are available in a variety of sizes and can be cut to length as desired. The maximum length is 20 feet in most cases1. Fan nose fenders can be pre-drilled with mounting holes if desired and pre-curved to match the radius if desired, the ends can be bevelled if required; we can provide connection plugs to joint the fan nose fender together.
| Type |
Material |
Hardness
(shore A) |

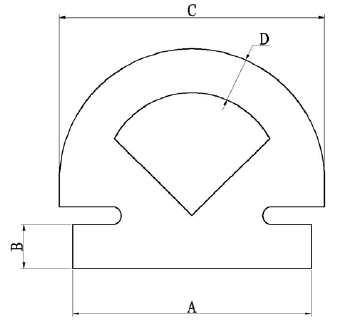

Size |
Weight |
| A(mm) |
B(mm) |
C(mm) |
D(mm) |
| DFN 001 |
EPDM |
65 |
63.5 |
13.5 |
50.8 |
15.9 |
4.2 kg/m |
| DFN 002 |
EPDM |
65 |
95.3 |
19.8 |
108 |
19.1 |
8 kg/m |
| DFN 003 |
EPDM |
65 |
138.1 |
25.4 |
152.4 |
25.4 |
15.2 kg/m |
