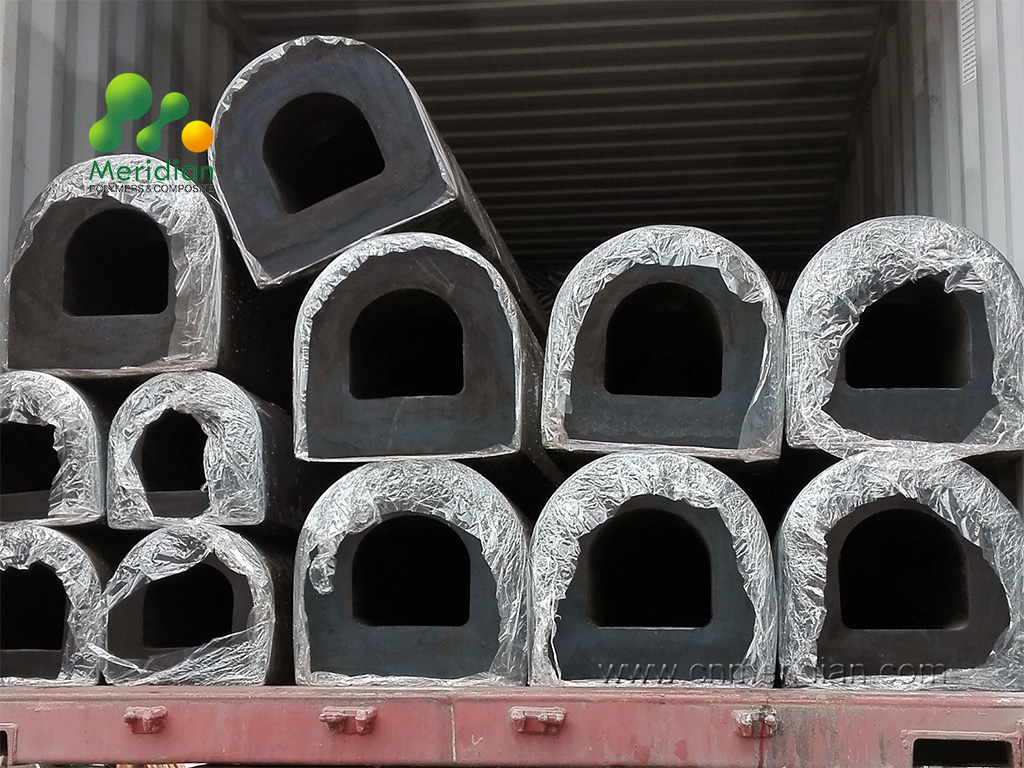

Type DD Rubber Fenders

Type DD fenders are simple rubber profiles, usually attached with bolts to the structure. It can be made in virtually any length then cut and drilled to suit each application.
Description

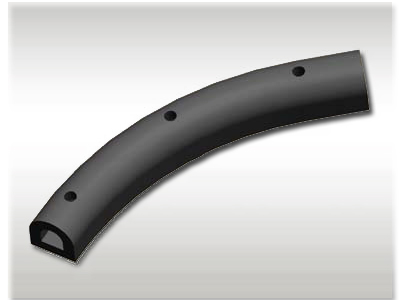

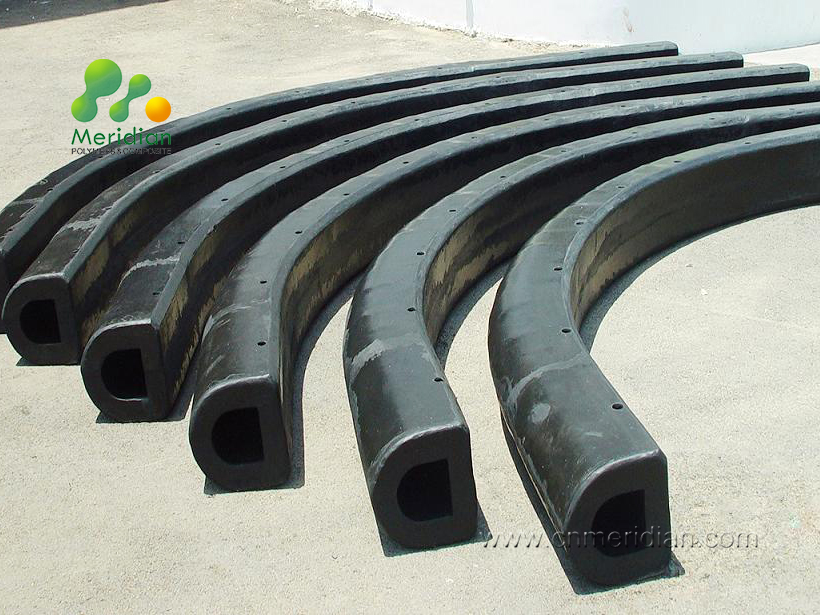

Type DD fenders are simple rubber profiles, usually attached with bolts to the structure. It can be made in virtually any length then cut and drilled to suit each application. Pre-curved sections and special sizes are available on request.

Usually black in color, Type DD fenders can also be supplied in creamy white as an option.



Features

           With reasonable reaction it may absorb more energy than that of cylindrical type

           Convenient to installing

           It is usually used for docks of frame work type and ships due to the small size of its bottom width


Applications

           Jetties and wharves for small craft

           Tugs and workboats

           Pontoon protection

           Inland waterways

           General purpose fendering

Specifications of DD Type Rubber Fender

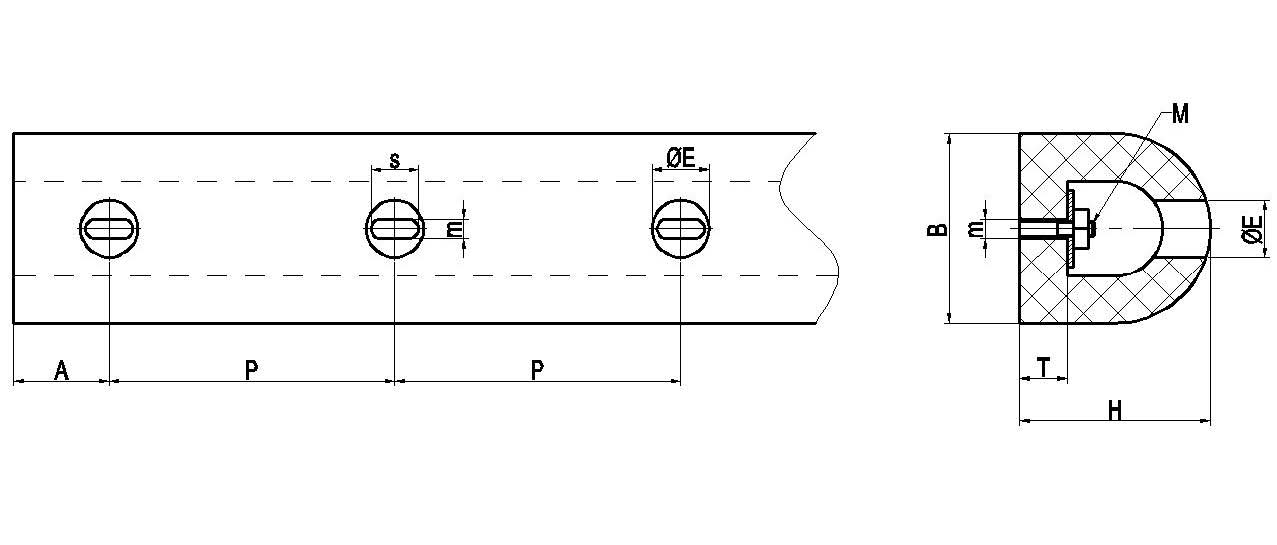

Specifications H B T A P ØE S m M Max Length
(mm)
Weight
(kg/m)
DD90x120 90 120 20 100~250 300~500 30 16 16 M12 2000 7.8
DD100x100 100 100 28 100~250 300~500 30 16 16 M12 5000 10
DD125x125 125 125 20 100~250 300~500 30 16 16 M12 2000 13
DD150x150 150 150 40 100~250 300~500 50 50 25 M22 5000 19
DD200x200 200 200 50 100~250 300~500 60 25 25 M22 3000 35
  200 200 30 100~250 300~500 55 45 27 M24 2000 32
DD250x250 250 250 60 100~250 300~500 65 65 32 M27 4000 55
DD300x300 300 300 75 100~250 300~500 75 68 34 M30 4000 78
DD350x350 350 350 80 100~250 300~500 88 35 35 M30 3000 107
DD400x400 400 400 100 100~250 300~500 100 80 40 M36 3000 140
DD400X450 450 400 100 100~250 300~500 100 80 40 M36 4000 153
DD500x500 500 500 125 100~250 300~500 115 78 52 M48 3000 218

DD Type Rubber Fender Performance
Specifications Energy Absorption
(KJ)
Reaction Force
(KN)
D200x200x850 4.3 125
D200x200x900 4.6 132.3
D200x200x1000 5.1 147
D200x200x1500 7.7 220
D200x200x2000 10.2 294
D300x300x850 10 255
D300x300x900 10.6 265
D300x300x1000 11.8 294.3
D300x300x1500 16.7 441.5
D300x300x2000 23.6 588.6
D300x300x2500 29.9 735.8
D400x400x850 16.7 325.2
D400x400x1000 19.6 382.6
D400x400x1500 29.4 573.9
D400x400x2000 58.8 765.2
D500x500x850 26.7 383.6
D500x500x1000 31.4 451.3
D500x500x1500 47.1 686.7
D500x500x2000 62.8 902.6
